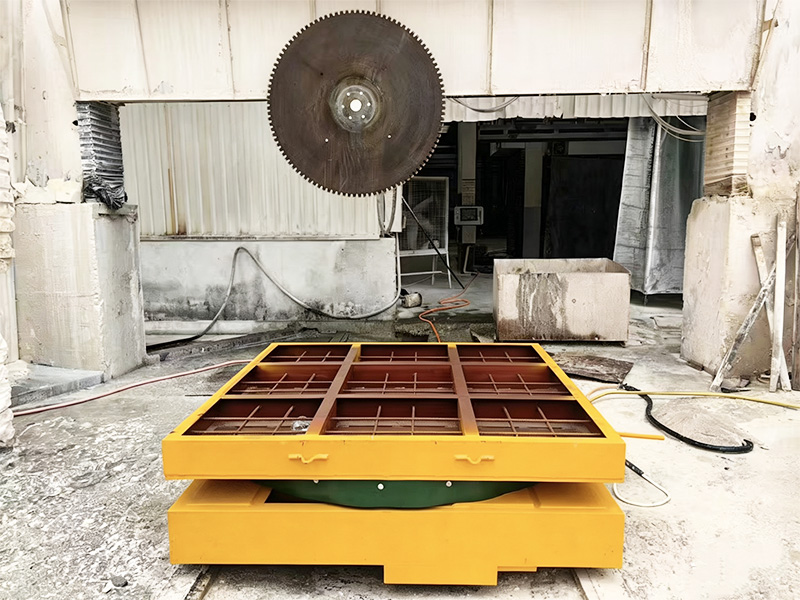

The stone block trimming workbench, also called stone block repair worktable, stone block dressing stataion or stone block squaring table, is a specialized heavy-duty platform necessary in stone quarries and stone fabrication factories. It is used to promote the precise trimming, squaring and surface repair of natural stone blocks, such as granite, marble, quartzite, travertine, limestone, etc., before they are introduced to gang saw or wire saw machines for cutting into stone slabs. The stone block trimming workbench bridges the gap between raw extraction and precision processing, which ensures that irregular or damaged stone blocks are transformed into clean, rectagular units. It would ideally maximize yiled and reduce equipment wear.
Item NO.:
YT5061Order(MOQ):
1Payment:
TTColor:
CustomizedShipping Port:
XiamenLead Time：
15-20 days after receiving depositWeight：
3 tons
Stone Block Trimming And Repair Worktable Heavy-duty Marble Block Cutting Workbench From China

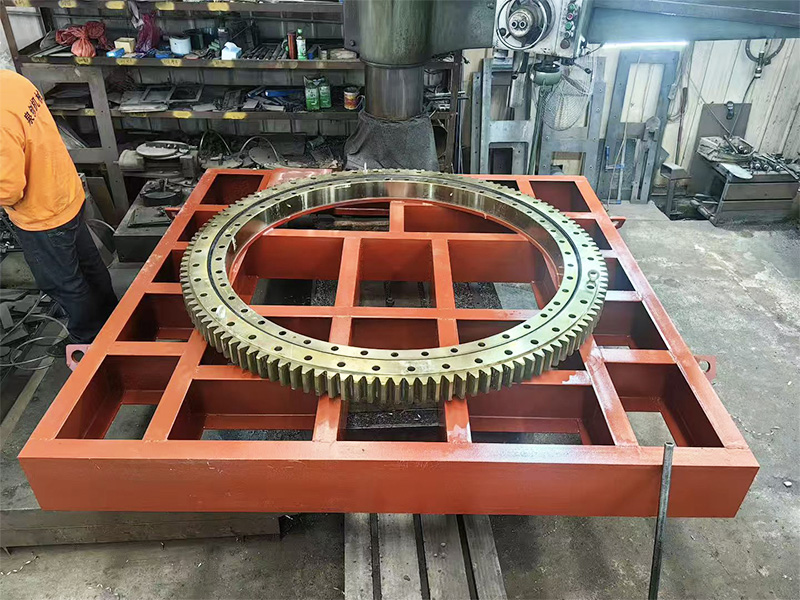

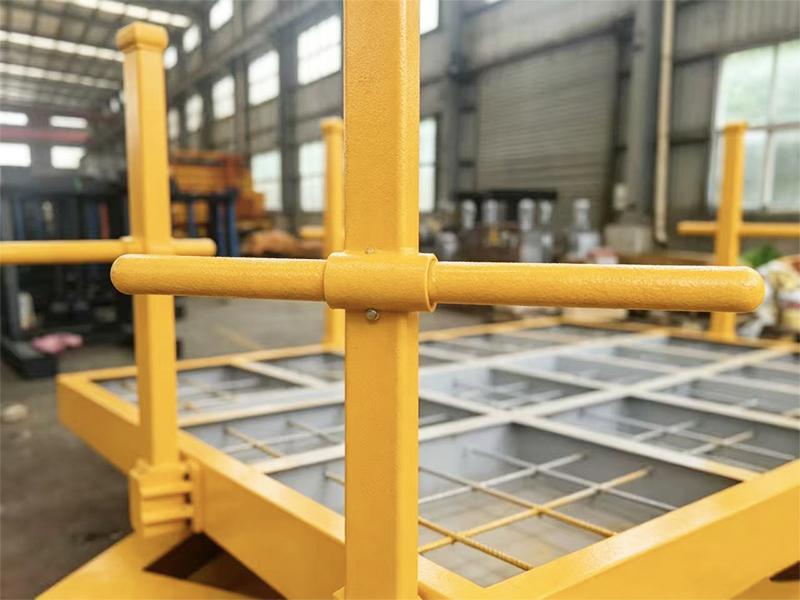

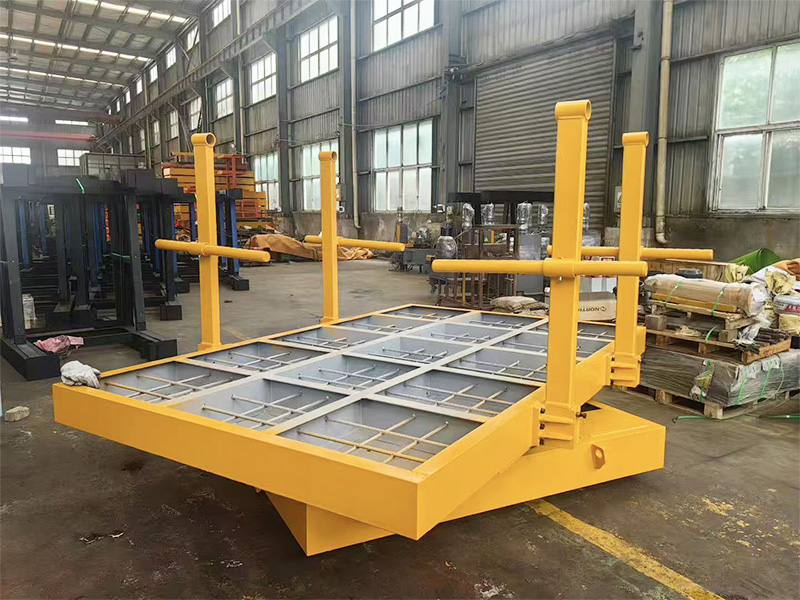

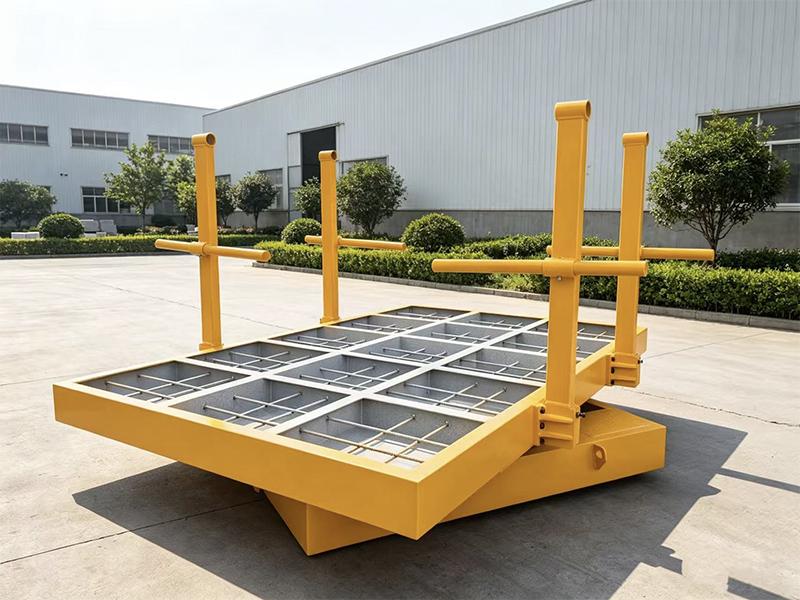

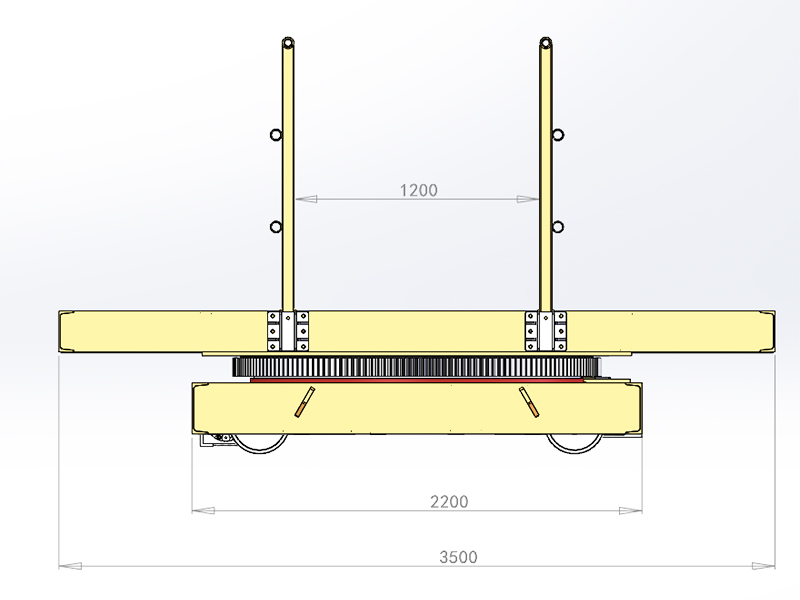

The struction of this stone block trimming worktable could be divided to four parts. The bottom part is base platform to install four heavy-duty wheels, so as to run on the floor rails in quarries or stone factories. The platform is welded with U-beams and middle box section. Then on top of this platform is a heavy-duty roller track that allow the upside worktable and loading stone block to be rotated flexibly. So we have this worktable as thrid part, also welded with channel steel and box section to bear heavy stone blocks. We need to specially emphasize that we keep the box section empty, so as to pour concrete and form a stronger and more lasting platform. Finaly, the top worktable is also connected to four steel columns with adjustable bars, which ensures the block is kept on the right position and workers are safe from danger. Of course, the rotating process is powered by motor without much labor cost. Therefore, this smart design of block repair workbench is useful in removing excess or irregular portions of various stone blocks, in order to realize perfect 90 degree of angles and parallel faces. It will finally improve stone slab yield and quality control.
Specifications:
| Worktable size (mm) | Self-weight | Max loading weight | Max block size (LxW) | Motor power | Motor quantity |
| 3500x2200x682 | 3 tons | 50 tons | 2200*1200mm | 1.5 kw | 2 pcs |
Features:
Product photos:
