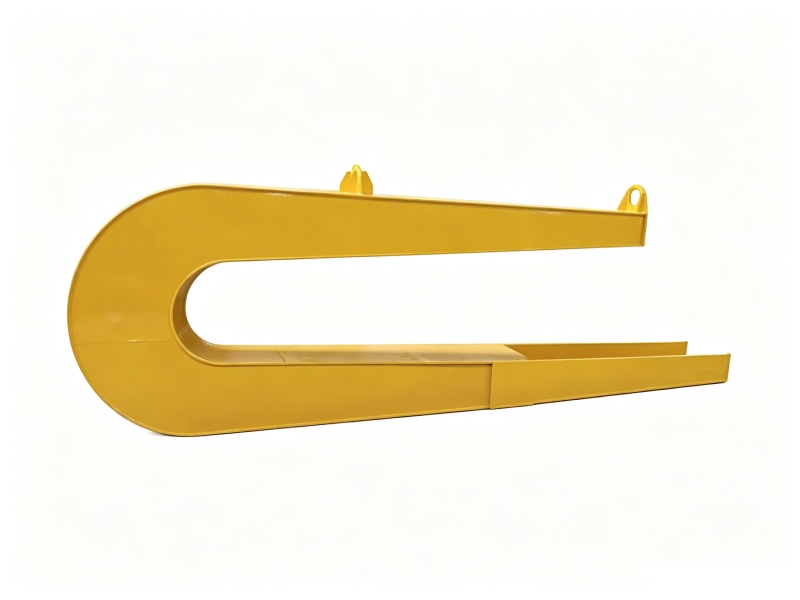

This U-type lifting beam is professionally designed to match with overhead crane, for hoisting bundled marble, granite and quartz big slabs. Heavy‑duty U‑shaped and welded steel frame directly supports full stone package to be loaded into container or unloaded from container. It effectively prevents slab damage and improves container‑loading efficiency. Heavy‑load welding structure with anti‑corrosion yellow paint is stable in handling for long lifespan. Custom tonnage and length are available for different stone‑factory working conditions.
Item NO.:
YT1323Order(MOQ):
1Payment:
TTProduct Origin:
ChinaColor:
CustomizedShipping Port:
XiamenLead Time：
10-15 days after receiving depositWeight：
2 tons
U-type Lifting Beam Heavy-duty Crane Boom Stone Slab Bundle Loading Or Unloading Arm

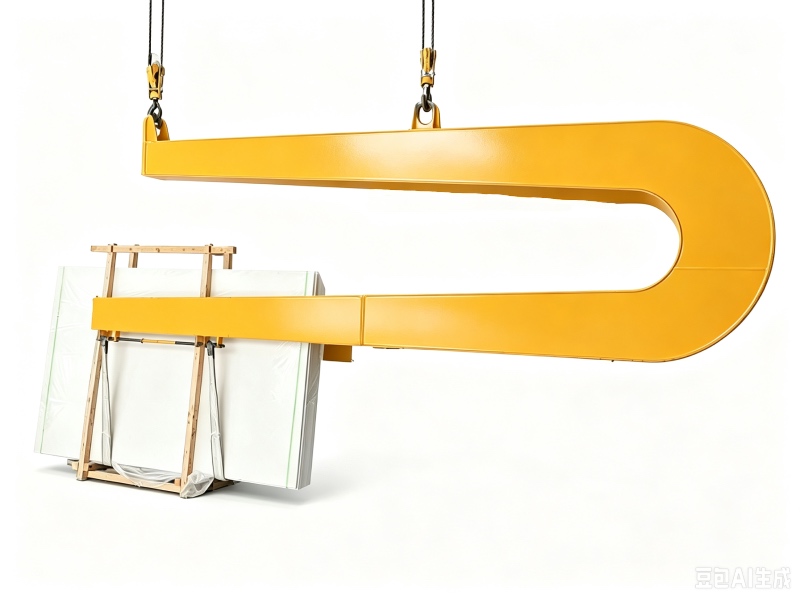

This heavy‑duty U‑type lifting beam is specially engineered for safe handling, transporting and loading of full‑packaged stone slabs, including quartz stone, marble and granite large panels in stone factories, warehouses or stone yards. Designed to cooperate with overhead cranes, it solves the long‑standing pain point of difficult turnover and hoisting of bundled stone slabs. With high-strength steel plate, we realize the integral U-shaped heavy-duty steel structure, which supports the heavy loads and avoids deformation after long time of use. The top lifting lugs are designed as the connection points to overhead crane hooks, which ensures the stable suspension and balanced loading force across the whole lifting beam. Besides, the long-reach fork-in design of lower part of the boom is built with two robust steel plate, which realizes a gap to include the bundled stone slabs in the middle. In this way can we protect the stone surface and wooden package from breaking and improves the hoisting efficiency. By the way, the two forks are detachable to reduce the package size, so as to ease the shipment and save shipping cost. Customized specifications and loading weight are available.
Features:
1. High Safety for Whole‑Package Hoisting
With industrial ropes to work together, the front two forks can hoist full‑packaged stone slabs in a safe and efficient way. It avoids risks of slab cracking, edge chipping and falling caused by traditional sling binding.
2. High Working Efficiency
It realizes one‑shot hoisting for entire bundled stone slabs and greatly shorten loading or unloading and turnover time, very suitable for factory internal transfer, container loading and yard stacking operations.
3. Robust Industrial Construction
Made of heavy‑duty structural steel, with strict welding quality control, it is excellent in bending resistance, stable performance under frequent heavy‑load cycles for stone‑factory intensive work scenarios.
4. Easy & Convenient Operation
The top lifting lugs are quick to connect with overhead crane hooks. Operators only need to align the fork arm to insert under stone packs. No complicated auxiliary fixtures are required. Rather it is simple for workshop workers to master.
Specifications:
| Overall size | Package size | Loading weight | Product weight |
| 6400*500*2050mm | 5800*500*2050mm | 5 tons | 2 tons |
Photos reference:
